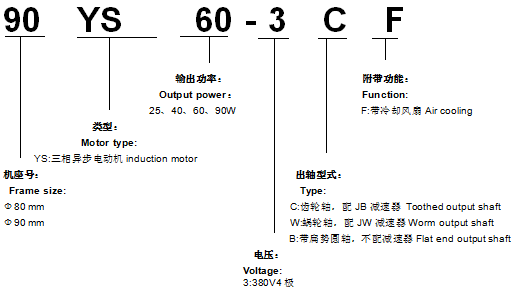

型号说明Indications of the model number
注：当电机配减速器后，型号中可略去减速器的机座号。例：90YS60—3CF/JB100D。
电机性能参数 Specifications
|
型号 Type |
功率 Power W |
电压 Voltage V |
频率 Frequency Hz |
额定电流 Rated Current A |
额定转矩 Rated Torque N·m(Kg·cm) |
额定转速 Roted Speed r/min |
起动转矩 Starting Torque N·m(Kg·cm) |
起动电流 Starting Current A |
工作状态 Operating Mode |
|
80YS25-3 |
25 |
380 |
50 |
0.15 |
0.195(1.95) |
1250 |
0.4(4) |
0.4 |
连续Cont |
|
90YS40-3 |
40 |
380 |
50 |
0.2 |
0.3(3) |
1300 |
0.7 (7) |
0.45 |
连续Cont |
|
90YS60-3 |
60 |
380 |
50 |
0.3 |
0.45(4.5) |
1300 |
1.1(11) |
0.6 |
连续Cont |
|
90YS90-3 |
90 |
380 |
50 |
0.32 |
0.7(7) |
1250 |
1.7(17) |
0.9 |
连续Cont |
50Hz 允许负载 Load permissible N.m / Kg . cm
|
转速r/min 型号 速比
|
500 |
416 |
300 |
250 |
200 |
166 |
120 |
100 |
83 |
60 |
50 |
41 |
30 |
25 |
20 |
16 |
15 |
12.5 |
10 |
8.3 |
7.5 |
6 |
5 |
|
|
3 |
3.6 |
5 |
6 |
7.5 |
9 |
12.5 |
15 |
18 |
25 |
30 |
36 |
50 |
60 |
75 |
90 |
100 |
120 |
150 |
180 |
200 |
250 |
300 |
||
|
80YS25-3 |
/80JB |
0.47 |
0.57 |
0.79 |
0.95 |
1.19 |
1.42 |
1.98 |
2.37 |
2.56 |
3.56 |
4.27 |
5.13 |
6.44 |
7.61 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
8 |
|
4.7 |
5.7 |
7.9 |
9.5 |
11.9 |
14.2 |
19.8 |
23.7 |
25.6 |
35.6 |
42.7 |
51.3 |
64.4 |
76.1 |
80 |
80 |
80 |
80 |
80 |
80 |
80 |
80 |
80 |
||
|
转速r/min 型号 速比 |
500 |
416 |
300 |
250 |
200 |
166 |
120 |
100 |
83 |
60 |
50 |
41 |
30 |
25 |
20 |
16 |
15 |
12.5 |
10 |
8.3 |
|
|
3 |
3.6 |
5 |
6 |
7.5 |
9 |
12.5 |
15 |
18 |
25 |
30 |
36 |
50 |
60 |
75 |
90 |
100 |
120 |
150 |
180 |
||
|
90YS40-3 |
/90JB D |
0.81 |
0.97 |
1.2 |
1.4 |
1.8 |
2.2 |
3.0 |
3.28 |
3.9 |
5.4 |
5.9 |
7.1 |
9.8 |
11.8 |
14.7 |
17.7 |
19.7 |
22 |
22 |
22 |
|
8.1 |
9.7 |
12 |
14 |
18 |
22 |
30 |
32.8 |
39 |
54 |
59 |
71 |
98 |
118 |
147 |
177 |
197 |
220 |
220 |
220 |
||
|
90YS60-3 |
/90JB D |
1.2 |
1.4 |
1.8 |
2.2 |
2.7 |
3.3 |
4.5 |
4.9 |
5.9 |
8.2 |
8.9 |
10.6 |
14.8 |
17.7 |
22 |
22 |
22 |
22 |
22 |
22 |
|
12 |
14 |
18 |
22 |
27 |
33 |
45 |
49 |
59 |
82 |
89 |
106 |
148 |
177 |
220 |
220 |
220 |
220 |
220 |
220 |
||
|
90YS90-3 |
/90JB D |
1.89 |
2.3 |
2.8 |
3.4 |
4.25 |
5.1 |
7.08 |
7.65 |
9.2 |
12.7 |
13.8 |
16.5 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
22 |
|
18.9 |
23 |
28 |
34 |
42.5 |
51 |
70.8 |
76.5 |
92 |
127 |
138 |
165 |
220 |
220 |
220 |
220 |
220 |
220 |
220 |
220 |
||
注：*减速器出轴转向与减速的级数有关，上表中红色字体的表示与电机反方向，其余与电机同方向。
*外形尺寸参见同功率单相电机外形尺寸。
