一.Mechanical damping motor
Features:

1. Simple structure

2. 0.5 seconds brake

3. No brake holding torque.
Applicable motor: 6W ~ 40W, model plus suffix J. Example: 70YN15-2CJ.


二. Electronic Brake
Features:

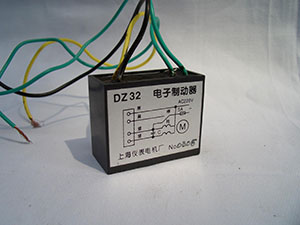

1 .Achieve rapid braking.                              Model: DZ32
2 .Nothing to do with the motor structure.     Rated voltage: 220V
3 .No brake holding torque.                           Maximum working current: 3A
Applicable Motor: 6W ~ 40W

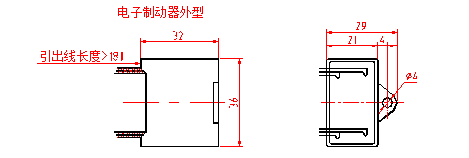

Dimensions

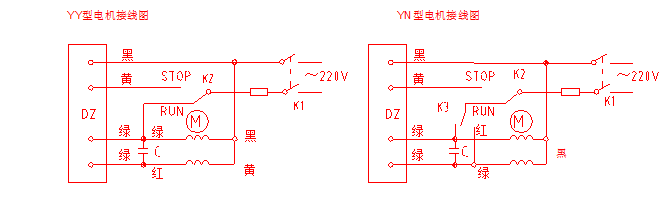

接线图  Wiring DiagramWiring Diagram
